Automtotive Door Trim Servo Staking Machine

Automatic heat staking machine MSR-MC100S is for automotive door trim assembly specially. Machine staking forced by servo motor system in precision control. Machine staking tooling measurement max to L12800*W1100*H5500 which covers almost automotive door trim size. Machine is designed with 100 sets of temperature control circuits, can be applied to staking max.100 points.

Technical description

I. Benefit

1. Servo motor controls staking force, staking in high precision process control;

2. Pre-deformation design, high stability in performance;
3. Double gear bar & 4-pillars elevation guide control in repeat precision for reliability;
4. Standard machine specification designed for automotive door trim can be applied for different door trim staking easily through tooling changing-over;
5. MP Sonic IOS operation system with huge function for management;
6. I-Cloud Remote system by WIFI for convenient maintenance & production/equipment management.

II. Features Design:

1. Programmable staking process;
2. Formula system with automatic staking tooling identification for easy staking parameters load after tooling change-over;
3. Interlock design for tooling change-over trolley for safe and easy staking tooling change-over operation;
4. MES system for management;

5. I-Cloud remote operation system for easy maintenance, service and management.

III. Optional Feature:

1. SPC traceability system;

2. Separate clamp control system for easy heat staking adjustment design.

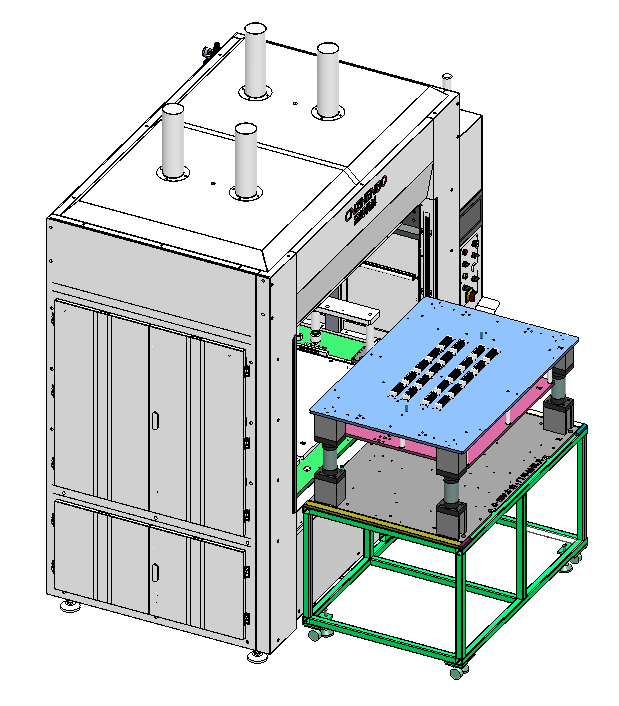

Machine Design Show

Heat Staking Tooling Machine
